A small hole bore gauge is a precision instrument used to measure the internal diameter of narrow bores that standard bore gauges can’t reach. It’s designed for close-tolerance inspection of small holes in machined components, valve bodies, and tooling. Exact measuring range, accuracy, and graduation for this specific model are needs verification against the Mitutoyo datasheet.
The Mitutoyo Bore Gauge Small Holes is a high-precision measuring instrument specifically designed for accurate bore diameter and circumference measurement in parts with small internal holes. This high-accuracy bore gage ensures consistent performance and repeatable readings in every inspection, machining, and quality-control process.
With superior Japanese craftsmanship, the dial bore gauge by Mitutoyo – Bore Gauges offers smooth operation, strong durability, and a long service life. Its easy calibration and ergonomic design make it the top choice among professionals who value precision and consistency.
Key Features & Design
- Specially engineered for Bore Gauge Small Holes, ideal for measuring small internal diameters in mechanical and industrial components.
- Offers an extended bore gauge range, ensuring precision for both small and medium-sized bores.
- The digital bore gauge version delivers fast electronic readings, enhancing efficiency and accuracy.

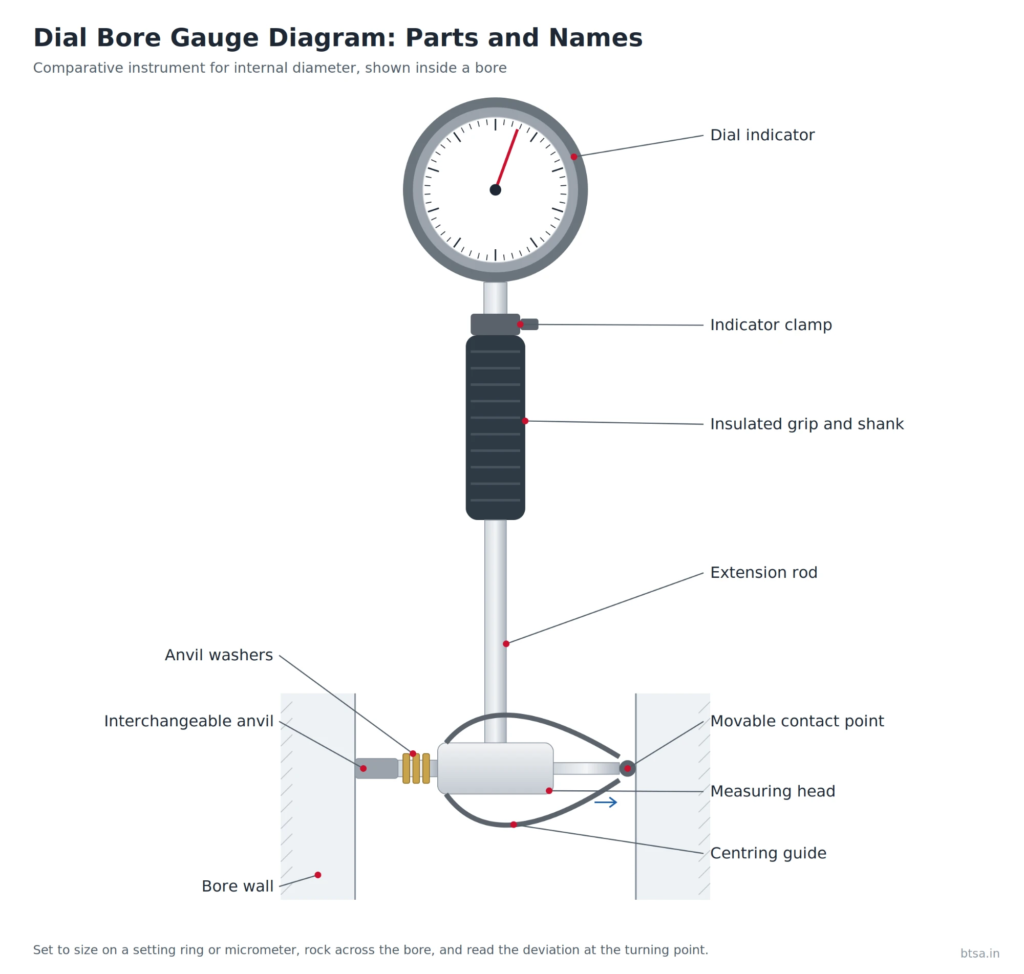

- Clear Dial bore face ensures easy reading of measurements, complemented by a detailed dial bore gauge diagram.
- Suitable for professional Bore gauge use in R&D, aerospace, automotive, and production environments.
- Made with high-grade materials such as anvils, spacers, stems, and extensions — each Bore gauge parts name is replaceable for extended product life.
- Available in various configurations and Types of bore gauge, including mechanical, dial, and digital models.
- Functions like a Bore micrometer, enabling micro-level measurements in small cylindrical bores.
- Delivers outstanding accuracy with a fine Bore guage least count in mm, ensuring precision under tight tolerances.
- Both analog and digital versions maintain stable sensitivity, providing dependable Dial bore guage least count readings.
- Reliable calibration ensures consistent Bore dial guage least count readings during multiple inspections.
- Crafted by Mitutoyo – Bore Gauges, a globally recognized leader in precision measurement technology.
- Competitive bore gauge price paired with exceptional quality makes it an excellent investment for precision-driven industries.
Applications & Benefits
The Mitutoyo Bore Gauge Small Holes is perfect for measuring bore diameter in engine parts, small tubing, precision instruments, and machined components. Its ability for circumference measurement and micro-inspection ensures tight tolerances in both workshop and laboratory setups.
Whether using a dial bore gauge or digital bore gauge, this instrument guarantees unmatched accuracy, repeatability, and ease of operation. Designed for professionals, it ensures precise results in all industrial and research applications.
With the trust of Mitutoyo – Bore Gauges, the Bore Gauge Small Holes represents a combination of advanced engineering, long-term reliability, and cost efficiency.
Frequently Asked Questions
What size holes can a small-hole bore gauge measure?
Small hole bore gauges are designed for narrower internal diameters than standard bore gauges can reach; the exact range depends on the specific contact points fitted. Needs verification — confirm this model’s measuring range from the datasheet.
How is a small hole bore gauge different from a standard bore gauge?
A small hole bore gauge uses finer, spring-loaded contact points sized for narrow bores, while standard bore gauges use larger anvils suited to bigger diameters. Both work on the same contact-measurement principle.
How do you set up a bore gauge before measuring?
The gauge is typically zeroed against a known reference, such as a micrometer or setting ring, matching the expected bore diameter. This ensures the reading reflects the true internal diameter of the part.
What is a bore gauge used to inspect?
Bore gauges are used to check the internal diameter of machined holes, bushings, valve seats, and cylindrical bores where tight dimensional tolerances matter.
Can a small hole bore gauge be used for through-holes and blind holes?
Suitability for blind holes depends on the contact point design and probe depth of the specific model. BTSA also carries a dedicated Bore Gauge for Blind Holes — ask BTSA which model fits your application.
How often should a bore gauge be calibrated?
Calibration frequency depends on usage and your quality system’s requirements; many workshops re-verify bore gauges against a setting ring at each use and formally calibrate on a set schedule. BTSA operates NABL-accredited calibration services in Chennai and Hyderabad.
Not sure whether a small hole or standard bore gauge fits your bore size? See our comparison guide Small Hole Bore Gauge vs Standard Bore Gauge: Which One Should You Use?.
